9SJ-2500 Feed Process Complete Equipment whose output is 5,000 tons every year
1. Applicability: Feed process complete equipment whose output is 5,000 tons every year, which is fit for processing and preparing compound feed in different recipe proportion of domestic fowl and livestock. It meets the feed requirement of 10,000 pigs, 3,000 cows and 100,000 eggs. And fits for milch cow farm and medium scale feed factory.
2. Main Feature:
a）、The machine has rational layout that promise to realize the process flow;
b）、Automatic degree is high, and all the production processes are displayed on the analogue screen of the centre control room which is operated, directed and scheduled by the operator in the room. By this way, you can not only auto-interconnected controlthe process flow in the room, but also manually control. So save the manpower and improve the production efficiency.
c）、Main equipment are seriation production facility, for example batch weigher is ZP8-250 automatic and continuous distributor. Measure accurately and operate reliably.
d）、Good working conditions for operators, have lots of dust prevention and anti-noise measures, every manually-operated gate is operated on the upside. So the working conditions is improved and in favor of improving labour productivity.
e）、The machine’s structure is rack assembled type, whose layout is compact and rational and whose floor area is small.

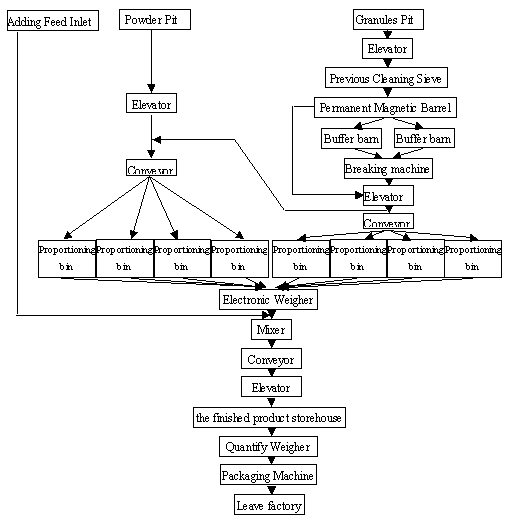

3、Operating Principle:

4、Main Technical Specifications and Performance Index
1）、Machine’s Size ( L×W×H ) : 3.5×5.5×8.6 (m)
2）、Total Capacity of Installation: 57.21 kw;
3）、Productivity:
4）、Coefficient of Variation of Mixing Evenness Degree: < 10% ( less than 10%)
5）、Power Consumption: <16°/t ( less than 16 degree per ton)
6）、Noise in the main operating space: < 85dB ( less than 85 decibel )
7）、Dust concentration in the main operating space: < 10 mg/m3 ( less than 10 mg/m3
8）、Measuring accuracy of electronic weigher: Static 1/500, Dynamic 1/200;
9）、Number of Operators: 4-5 people ( except feeding and discharging).

5、Pictures of Products

9SJ-2500 Feed Process Complete Equipment
